TUBE & FLAP

绝不忽视隐性安全问题。

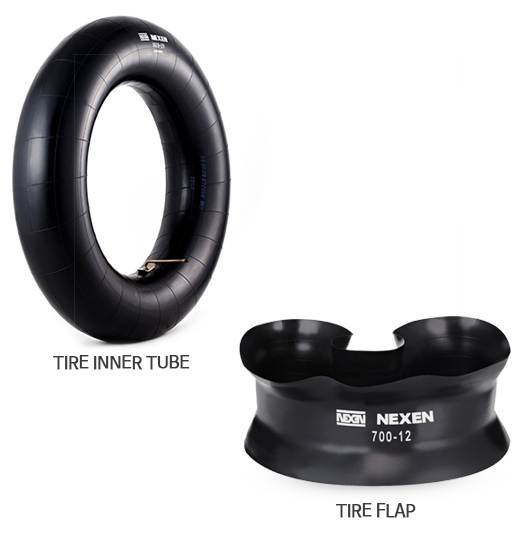

TIRE INNER TUBE

  • TIRE INNER TUBE
  • TIRE INNER TUBE
    汽车轮胎内胎以50年来积累的专业知识和不断的技术开发为基础，生产世界上最佳品质的产品，出口至全世界140多个国家，重视轿车、卡车及客车等隐性安全问题，为各位客户的安全负责。
    TIRE FLAP
    内衬带，耐克森拥有世界最佳品质及各种规格的产品，与轮胎内胎一起，供应到世界各地。
    ENVELOPE
    轮胎封装是生产再生轮胎中使用的橡胶产品，耐克森以突出的耐久性，使用的经济性和显著的生产效率，通过回收利用，走在保护资源的前列。

TIRE INNER TUBE

  • INNER TUBE
  • TUBE VALVE
  • TIRE FLAP
  • ENVELOPE
  • Tube Mounting
Group Size
  • Radial
  • Bias
Group Valve QTY/CTN Combination (Radial)
ER10TR1345145R10,145/70R10,155/70R10
DR12TR1340125R10
ER12TR1340135R12,140R12,145R12,150R12,145/70R12,155/70R12,P135/75R12,P145/75R12,P135/80R12,P145/80R12
FR12TR1338155R12,175/70R12,P155/75R12,P165/75R12,P155/80R12,P165/80R12,ZR70-12
ER13TR1340135R13,145R13,145/70R13,155/70R13,140R13,150R13,165/70R13,P135/75R13,R13,P135/80R13,P145/80R13
FR13TR1330155R13,165R13,175/70R13,160R13,P155/75R13,P165/75R13,P155/80R13,P165/80R13,AR78-13
GR13TR1330175R13,185R13,185/70R13,195/70R13,170R13,180R13,205/70R13,P175/75R13,P185/75R13,P175/80R13,P185/80R13,BR78-13,CR78-13,DR78-13,CR70-13
KR13TR1325DR70-13,ER70-13,ER78-13
ER14TR1335135R14,145R14,145/70R14,155/70R14,165/70R14,140R14,150R14,P135/75-14,P145/75R14,P135/80R14,P145/80R14
FR14TR1330155R14,165R14,175/70R14,185/70R14,160R14,P155/75R14,P165/75R14,P155/80R14,P165/80R14,AR78-14,BR78-14,CR78-14
GR14TR1328175R14,185R14,195/70R14,P175/75R14,P185/75R14,P175/80R14,P185/80R14,DR78/14,ER78-14
KR14TR1325195R14,205R14,205/70R14,215/70R14,P195/75R14,P205/75R14,P195/80R14,P205/80R14,225/70R14,P215/75R14,FR78-14,GR78-14,DR70-14,ER70-14,FR70-14
MR14TR1320215R14,225R14,235R14,HR78-14,GR70-14,HR70-14,JR70-14,LR70-14
DR15TR1340125R15
ER15TR1335135R15,145R15,145/70R15,170R15,180R15,205/70R15,P175/75R15,P185/75R15,P175/80R15,P185/80R15,CR75-15,ER78-15,CR70-15,DR70-15
FR15TR13,TR1530155R15,165R15,175/70R15,185/70R15,160R15,P155/75R15,P165/75R15,P155/80R15,P165/80R15,AR78-15,BR8-15,BR70-15
GR15TR13,TR1522175R15,185R15,195/70R15,170R15,180R15,205/70R15,P175/75R15,P185/75R15,P175/80R15,P185/80R15,CR78-15,DR78-15,ER78-15,CR70-15,DR70-5
KR15TR13,TR1520195R15,205R15,205/70R15,215/70R15,225/70R15,P205/75-15,P195/80R15,P205/80R15,215/75R15,P225/70R15,FR78-15,GR78-15,ER70-15,FR70-15
MR15TR13,TR1516215R15,225R15,235R15,235/70R15,P225/75R15,P215/80R15,P225/80R15,HR78-15,JR78-15,LR78-15,GR70-15,HR70-15,JR70-15,LR70-15
FR16TR13,TR1522550R16
GR16TR13,TR15206.00R16,6.50R16,175R16,185R16
KR16TR13,TR15166.70R16,7.00R16,7.50R16,195R16,205R16,215R16
Group Valve QTY/CTN Combination (Bias)
E-10TR13454.80/5.00/5.20/5.90/5.95/145-10
D-12TR13404.00/4.40/5.30/5.35/125-12
E-12TR13404.80/5.00/5.20/5.50/5.65/135/5.95, 145/5.90-12
F-12TR13355.60/6.00/6.20-12, Ab7B-12
E-13TR13405.20/5.50/5.65/135/5.95/145/5.90-13
F-13TR13305.60/5.90/6.00/6.15/155/6.45/165/A78/Y78/6.20/6.90-13
G-13TR13306.40/6.50/6.70/7.00/6.95/175/7.35/185/B78/C78/7.30-13
K-13TR13257.25/7.50-13, D78-13
E-14TR13355.00/5.20/5.50/5.65/135/5.95/145-14
F-14TR13305.60/5.90/6.00/6.15/155/6.45/165/6.20/6.90-14, AB78-14
G-14TR13286.40/6.50/6.70/7.00/6.95/175/7.35/185/C78/D78/7.30-14
K-14TR13227.50/8.00/7.75/195/8.25/205/E78/F78-14
M-14TR13208.50/8.85/9.00-14/GHJ78-14
D-15TR13404.00/4.25/4.40-15
E-15TR13355.20/5.50/5.65/135/5.95/145/6.20-15
F-15TR13,TR15305.60/5.90/6.00/6.35/155/6.85/165/6.90-15, AB78-15
G-15TR13,TR15226.40/6.50/7.00L/7.15/175/7.35/185/7.30-15, 17X380, CDE87-15
K-15TR13,TR15207.00/7.10/7.75/195/8.15/205-15, FG78-15
M-15TR13,TR15167.50/7.60/7.75/8.00/8.20/8.85/9.00/L84/9.15-15, HJL78-15
F-16TR13,TR15305.00/5.50-16
G-16TR13,TR15226.00/6.50/175/185-16
K-16TR13,TR15206.70/7.00/7.50/195/205/215-16
Passenger Car
  • Radial
  • Bias
  • 60 Series Radial
Size Valve QTY/CTN
145R10TR1345
125R12TR1340
135R12TR1340
145/70R13TR1340
145R13TR1340
155/70R13TR1340
155R13TR1338
175/70R13TR1338
135R13TR1340
145/70R13TR1340
145R13TR1340
155/70R13TR1340
155R13TR1335
165/70R13TR1335
165R13TR1335
175/70R13TR1335
175R13TR1335
185/70R13TR1330
185R13TR1330
195/70R13TR1330
CR70-13TR1335
DR70-13TR1330
ER70-13TR1330
135R14TR1335
145R14TR1335
155/70R14TR1335
155R14TR1335
165/70R14TR1335
165R14TR1335
175/70R14TR1335
185/70R14TR1328
185R14TR1328
195/70R14TR1328
195R14TR1325
205/70R14TR1325
205R14TR1325
215/70R14TR1325
DR70-14TR1328
ER70-14TR1328
FR70-14TR1328
ER78-14TR1328
FR78-14TR1328
GR78-14TR1325
HR78-14TR1325
135R15TR1335
135R380TR1335
145/70R15TR1335
145R15TR1335
155/70R15TR1335
155R15TR1330
165/70R15TR1330
165R15TR1330
165R380TR1330
175/70R15TR1330
185/70R15TR1322
185R15TR1322
195/70R15TR1322
195R15TR1320
205/70R15TR1320
205R15TR1320
215/70R15TR1320
225/70R15TR1316
235/70R15TR1316
FR78-15TR1322
GR70-15TR1322
GR78-15TR1320
HR70-15TR1320
HR78-15TR1320
JR78-15TR1320
Size Valve QTY/CTN
4.80-10TR1345
5.00-10TR1345
5.20-10TR1345
5.9-10TR1345
4.00-12TR1340
4.40-12TR1340
4.80-12TR1340
5.00-12TR1340
5.20-12TR1340
5.50-12TR1338
5.90-12TR1338
6.00-12TR1338
7.00-12TR1325
5.00-13TR1340
5.20-13TR1340
5.50-13TR1335
5.60-13TR1335
5.90-13TR1335
5.9-13TR1335
6.00-13TR1335
6.15-13TR1335
A78-13TR1335
B78-13TR1330
C78-13TR1330
6.2-13TR1335
6.9-13TR1335
6.45-13TR1335
6.50-13TR1330
6.95-13TR1335
7.00-13TR1325
7.25-13TR1325
7.30-13TR1325
7.50-13TR1325
5.00-14TR1325
5.50-14TR1335
5.90-14TR1330
6.00-14TR1330
6.20-14TR1335
6.90-14TR1335
6.15-14TR1335
6.45-14TR1330
6.5-14TR1330
6.95-14TR1328
C78-14TR1328
D78-14TR1328
E78-14TR1328
F78-14TR1328
G78-14TR1325
7.00-14TR1325
7.35-14TR1325
7.50-14TR1325
7.75-14TR1325
8.00-14TR1325
8.25-14TR1320
8.50-14TR1320
4.00-15TR1340
4.25-15TR1340
4.40-15TR1340
5.00-15TR1335
165-380TR1330
5.60-15TR1330
5.90-15TR1330
6.00-15TR1330
6.2-15TR1330
6.45-15TR1330
6.50-15TR1322
6.75-15TR1322
7.00-15TR1320
7.50-15TR1320
8.00-15TR1316
8.25-15TR1316
9.00-15TR1316
5.50-16TR1330
6.00-16TR1322
6.25-16TR1322
6.50-16TR1320
Passenger Car Valve QTY/CTN
185/60R13TR1330
195/60R13TR1330
205/60R13TR1330
P205/60R13TR1330
185/60R14TR1325
195/60R14TR1325
P185/60R14TR1325
205/60R14TR1325
P205/60R13TR1325
215/60R14TR1320
P215/60R14TR1320
225/60R14TR1320
P225/60R14TR1320
P235/60R14TR1320
P245/60R14TR1318
P255/60R14TR1318
P265/60R14TR1318
P275/60R14TR1318
185/60R15TR1320
195/60R15TR1320
P195/60R15TR1320
205/60R15TR1320
P205/60R15TR1320
215/60R15TR1318
P215/60R15TR1318
P225/60R15TR1318
P235/60R15TR1318
P245/60R15TR1312
P255/60R15TR1312
P265/60R15TR1312
P275/60R15TR1312
205/215/55//60R16TR1314
Light Truck
  • Radial
  • Bias
Size Valve QTY/CTN
145R12TR1340
175R13TR1335
7.00R13TR1325
DR78-14TR1330
ER78-14TR1328
7.00R14TR15,TR150A25
GR78-15TR15,TR150A20
HR78-15TR150A20
LR78-15TR1514
6.00R15TR1530
6.50R15TR1522
6.70R15TR15,TR150A22
7.00R15TR1520
7.10R15TR15,TR150A20
9.00R15TR150A20
10R15TR1316
17R400TR1414
19R400TR1422
4.00/4.50R16TR1520
6.00R16TR15,TR150A35
6.50R16TR15,TR150A22
7.00R16TR15,TR150A20
7.50R16TR15,TR150A20
8.25R16TR177A18
9.00R16TR177A12
205R16TR1512
245R16TR1520
280/85R16TR1512
8.00R16.5TR1512
8.75R16.5TR1520
9.50R16.5TR1520
10R16.5TR1518
12R16.5TR1518
7R17.5TR15,TR30012
8R17.5TR15,TR30020
8R19.5TR15,TR30016
Size Valve QTY/CTN
5.00-12TR1340
5.00-13TR1340
5.50-13TR1335
6.00-13TR1335
7.00-13TR1325
78*10-13TR1325
D78-14TR1330
E78-14TR1328
6.00-14TR1330
6.50-14TR1330
7.00-15TR1325
200/60-14.5TR1535
7-14.5TR30025
8-14.5TR30025
G78-15TR15,TR150A20
H78-15TR15,TR150A20
L78-15TR150A14
6.00-15TR1530
6.50-15TR1522
6.70-15TR1522
7.00-15TR15,TR150A20
7.10-15TR1520
7.50-15TR15,TR150A20
9.00-15TR150A16
10-15TR1314
17-400TR1422
19-400TR1420
4.00/4.50-16TR1535
6.00-16TR15,TR150A22
6.50-16TR15,TR150A20
7.00-16TR15,TR150A20
7.50-16TR15,TR150A85
8.25-16TR177A12
9.00-16TR177A12
8.00-16.5TR1520
8.75-16.5TR1520
9.50-16.5TR1518
10-16.5TR1518
12-16.5TR1512
7-17.5TR15,TR30020
8-17.5TR15,TR30020
8-19.5TR15,TR30016
Truck & Bus
  • Radial
  • Bias
Size Valve QTY/CTN
7.00R15TR75A18
7.50R15TR75A18
8.00R15TR177A16
8.25R15TR77A12
9.00R15TR78A12
10.00R15TR78A12
11.00R15TR78A10
7.00R16TR75A18
7.50R16TR177A16
7.00R17TR75A15
7.50R17TR75A15
8.25R17TR77A14
7.00R18TR75A14
7.50R18TR75A14
15R19.5TR3006
6.50R20TR75A15
7.00R20TR75A14
7.50R20TR177A14
8.25R20TR77A, V3-04-1010
9.00R20TR175A, V3-04-059
10.00R20TR78A, V3-04-057
11.00R20TR78A, V3-04-056
12.00R20TR78A, V3-04-055
13.00R20TR179A5
14.00R20TR179A4
10.00R22TR78A, V3-04-056
11.00R22TR78A, V3-04-055
10R22.5TR3009
11R22.5TR3007
12R22.5TR3006
11.00R24TR78A5
12.00R24TR78A5
13.00R24TR179A4
14.00R24TR179A4
13R22.5TR3005
11R24.5TR3006
12R24.5TR3005
Size Valve QTY/CTN
7.00-15TR75A18
7.50-15TR75A18
8.00-15TR177A16
8.25-15TR77A12
9.00-15TR78A12
10.00-15TR78A12
11.00-15TR78A10
7.00-16TR15, TR150A20
7.50-16TR75A18
7.50-16TR177A16
7.00-17TR75A15
7.50-17TR75A15
8.25-17TR77A14
7.00-18TR75A14
7.50-18TR75A, TR177A14
8.00-18TR75A14
12.00-18TR78A8
13.00-18TR78A7
8/9-19.5TR30014
15-19.5TR3006
6.50-20TR75A15
7.00-20TR75A14
7.50-20TR177A14
8.25-20TR77A, V3-04-1010
9.00-20TR175A, V3-04-059
10.00-20TR78A, V3-04-057
11.00-20TR78A, V3-04-056
12.00-20TR78A, V3-04-055
13.00-20TR179A5
14.00-20TR179A4
10.00-22TR78A, V3-04-056
11.00-22TR78A, V3-04-055
10-22.5TR3009
11-22.5TR3007
12-22.5TR3006
11.00-24TR78A5
12.00-24TR78A5
13.00-24TR78A4
14.00-24TR179A4
13-22.5TR179A5
11-25.4TR3006
12-24.5TR3005
Off-The-Road
  • Off-The-Road
  • Off-The-Road(Tractor-Grader)
  • Giant Off-The-Road
  • 70 Series Agricultural(Radial)
Size Valve QTY/CTN
7.00-20TR75A14
7.50-20TR75A, TR177A14
8.25-20TR77A10
9.00-20TR78A9
10.00-20TR78A7
11.00-20TR78A6
12.00-20TR78A5
13.00-20TR179A5
14.00-20TR179A4
15.00-20TR179A4
12.00-24/25TR78A5
13.00-24/25TR179A4
14.00-24/25TR179A4
16.00-24/25TRJ1175C, TRJ40003
18.00-24/25TRJ1175C, TRJ40002
21.00-24/25TRJ1175C, TRJ40002
22.00-25TRJ1175C, TRJ40002
24.00-25TRJ1175C, TRJ40001
15.5-25TRJ1175C, TRJ40004
17.5-25TRJ1175C, TRJ40003
20.5-25TRJ1175C, TRJ40002
23.5-25TRJ1175C, TRJ40002
26.5-25TRJ1175C, TRJ40001
Size Valve QTY/CTN
7.00-20TR75A14
7.50-20TR177A14
8.25-20TR77A10
10.00-20TR218A7
13.00-20TR220A5
14.00-20TR220A4
12.00-24TR218A5
13.00-24TR220A4
14.00-24TR220A4
16.00-24TR220A3
KM24TR220A4
Size Valve QTY/CTN
29.5-25TRJ1175C, TRJ40001
26.5-29TRJ1175C, TRJ40001
29.5-29TRJ1175C, TRJ40001
24.00-29TRJ1175C, TRJ40001
18.00-33TRJ1175C, TRJ40001
21.00-35TRJ1175C, TRJ40001
29.5-35TRJ1175C, TRJ40001
Size Valve QTY/CTN
320/70R24TR218A5
360/70R24TR218A5
380/70R24TR218A5
420/70R24TR218A4
480/70R26TR218A4
320/70R28TR218A5
360/70R28TR218A5
420/70R28TR218A4
460/70R28TR218A4
480/70R28TR218A4
420/70R30TR218A3
480/70R30TR218A3
520/70R30TR218A3
480/70R34TR218A3
520/70R34TR218A3
480/70R38TR218A3
520/70R38TR218A3
580/70R38TR218A2
Farm & Implement
Size Valve QTY/CTN
4.00-8TR1345
4.00-12TR1340
10.0/80-1216
9.00-13TR1513
6.00-14TR1330
4.00-15TR1540
5.00-15TR1535
7.5L-15TR1522
9.5L-15TR1516
11L-15TR1514
10.0/75-15TR1514
11.5/80-15TR1512
12.5L-15TR1512
10.0/75-15.3TR1516
11.5/80-15.3TR1512
12.5/80-15.3TR1512
4.00/60-15.5TR156
5.50-16TR1530
6.00-15.3TR1522
6.50-15.3TR1520
8-16TR1518
9.0/70-16TR75A,TR218A20
9.00-16TR1512
10.00-16TR75A,TR218A12
11.00-16TR75A,TR218A10
11L-16TR1514
10.5/65-16TR1512
11.5/70-16TR1512
13.0/65-16TR1512
13.0/75-16TR1512
14.0/65-16TR156
14.5/65-16TR156
13.50-16.1TR15A,TR218A8
14L-16.1TR15A,TR218A8
16.5L-16.1TR15A,TR218A8
18.4/21.5L-16.1TR218A4
15.0/55-17TR158
17.0/55-17TR158
14-17.5TR158
10.5/80-18TR1512
11.5/70-18TR1512
12.5/80-18TR158
13.0/65-18TR1512
14.5/60-18TR154
4.00-19TR14,TR1530
6.00-19TR14,TR1518
8.00-19TR1514
15-19.5TR158
500/55-20TR218A3
10.5/80-20TR218A9
12.5/80-20TR218A7
14.5/80-20TR218A5
16.0/70-20TR218A5
16.00-20TR218A4
20.0/70-20TR218A3
8.3-22/8-22TR218A14
9.5-22/9-22TR218A12
550/60-22.5TR218A2
600/55-22.5TR218A2
650/45-22.5TR218A1
700/45-22.5TR218A2
700/50-22.5TR218A1
8.3-24/8-24TR218A10
9.5-24/9-24TR218A10
11.2-24/10-24TR218A5
12.4-24/11-24TR218A5
13.6-24/12-24TR218A5
15.5/80-24TR218A4
16.5/85-24TR218A4
16.9-24/14-24TR218A4
18.4-24TR218A3
14.9-26/13-26TR218A4
19.5L-24TR218A3
16-9-26/14-26TR218A3
18.4-26/15-26TR218A3
23.1-2618-26TR218A2
28.1-26TR218A1
600/55-26.5TR218A1
800/40-26.5TR218A1
8.3-28TR218A8
9.5-28TR218A8
11.2-28/10-28TR218A5
12.4-28/11-28TR218A5
13.6-2812-28TR218A4
14.9-28/13-28TR218A4
16.9-28/14-28TR218A4
18.4-28/15-28TR218A4
14.9-30/13-30TR218A3
16.9-30/15-30TR218A3
23.1-30TR218A1
800/40-30.5TR218A1
8.3/8-32TR218A8
12.4-32/11-32TR218A4
24.5-32TR218A1
30.5-32TR218A1
11.2-34TR218A4
20.8-34TR218A1
23.1-34TR218A1
16.9-34/14-34TR218A3
18.4-34/15-34TR218A3
7.2-36TR218A5
9.5/9-36TR218A5
11.2-36/11-36TR218A4
12.4-36/11-36TR218A4
8.3/9.5-38TR218A5
11.2-38/10-38TR218A4
12.4-38/11-38TR218A4
13.6-38/12-38TR218A4
14.9-38/13-38TR218A3
15.5-38TR218A3
16.9-38/14-38TR218A3
18.4/38/15-38TR218A2
20.8-38TR218A2
6.50-40TR218A5
9.5-40TR218A4
9.5-42TR218A5
18.4-42TR218A1
20.8-42TR218A1
9.5-44TR218A4
14.9-46TR218A2
16.9/18.4-46TR218A2
13.6-48TR218A2
5.00-51TR218A6
270/95R52/54TR218A1
16.918.4R50TR218A1
Industrial
Size Valve QTY/CTN
4.00/4.80-8JS2,JS8740
5.00/5.70-8JS13,JS235
18X7-8JS87,TR13,JS230
18.5X8.5-8JS87,TR13,JS222
6.00/6.90-9JS87,TR13,JS230
7-9TR75A30
21X8-9TR1330
6.50-10TR15,JS2,JS8930
23X8-10TR15,JS2,JS8930
7.50-10JS2,TR75A18
7.50L-10JS2,TR75A18
9.00-10TR75A18
15L-10TR75A8
7.00-12JS2,TR75A22
7.00-15TR75A18
7.00L-15TR75A,TR177A18
7.50-15TR75A18
8.25-15TR75A,TR177A16
9.00-15TR75A12
10.00-15TR75A12
10.00L-15TR75A,TR78A12
11.00-15TR78A10
14.50L-15TR78A10
200-15TR75A18
250-15TR75A16
300-15TR78A12
31X12.50-15TR1512
6.00-16TR1522
10.5-18TR15,TR218A12
12.5-18TR15,TR218A8
7.50-18TR177A14
8.25-18TR177A14
7.50-20TR177A14
8.25-20TR177A10
9.00-20TR177A9
10.00-20TR78A7
10.5-20TR15,TR218A9
12.5-20TR15,TR218A7
11.00-20TR78A6
12.00-20TR78A5
14.00-20TR179A4
14.5-20TR15,TR218A5
14.00-24TR179A4
1. TR13, TR15, TR150A
Valve A B dia E dia
mm inch mm inch mm inch
TR13351.38562.2011.5 0.45
TR1535 1.38562.2016.50.65
TR150A90.53.5657.22.2515.60.61
2. TR87, JS89, JS2
Valve A B dia D Bend
Angle Z˚
mm inch mm inch mm inch
TR87150.5944.51.75331.3090
JS8912.50.49562.20512.0190
JS2261.02562.20331.3070
3. TR75A Series
Valve A B dia D Bend
Angle Z˚
mm inch mm inch mm inch
TR75A240.9482.53.25762.9986
TR77A240.9482.53.251054.1386
TR78A240.9482.53.251275.0086
TR175A240.9482.53.251154.5386
TR177A240.9482.53.25953.7486
TR179A240.94953.741415.5586
4. V3-02 Series
Valve A D Bend
AngleZ˚
mm inch mm inch
V3-02-3331.3044.51.7585
V3-02-1520.50.81145.55.7386
V3-02-1720.50.81156.56.1690
5. V3-04 Series
Valve A D E Bend
Angle Z˚
mm inch mm inch mm inch
V3-04-5200.79762.9947.51.8727
V3-04-1020.50.81471.85532.0926
6. V3-06 Series
Valve D E F G Bend
Angle Y˚		 Bend
Angle Z˚
mm inch mm inch mm inch mm inch
V3-06-3461.8120.50.8147.51.87170.6740140
V3-06-562.52.4619.50.77491.93170.6741139
7. TRJ1175C
Valve A B dia C D Bend
Angle Z˚
mm inch mm inch mm inch mm inch
TRJ1175C351.38321.2640.161054.1388
8. TRJ4000
Valve D
mm inch
TRJ4000139.75.50
9. TR218A, TR220A
Valve A B E
mm inch mm inch mm inch
TR218A20.60.8163.52.5015.90.63
TR220A30.21.1963.52.5015.90.63
Truck & Bus Tire
Flap Size Tire Size QTY/CTN
15-7.17.00/7.50/8.25-1521
15-7.99.00/10.00/11.00-1522
17.7.17.00/7.50/8.25-1720
18-77.00/7.50-1820
18-10.512.00/13.00-186
20-6.06.50/7.00-2015
20-7.07.50-2014
20-7.58.25/9.00-2014
20-8.010.00/11.00-2012
20-8.512.00-2010
20-9.013.00/14.00-208
20-1212.5/14.5-204
22-8.310.00/11.00-2210
22.5-9.011/12.22.510
24-8.211.00/12.00-2410
24/25-10.113.00/14.00-24/258
24.5-9.011/12.24.58
Radial Truck & Bus Tire
Flap Size Tire Size QTY/CTN
15R7.17.00/7.50/8.25R1521
17R7.17.50R1720
20R6.07.00R2015
20R7.07.50R2014
20R7.58.25/9.00R2014
20R8.010.000/11.00R2212
20R8.512.00R2010
20R8.310.00/11.00R2210
22.5R9.011/12R22.510
24R8.211.00/12.00R2410
24.5R9.011R24.58
Light Truck Tire
Flap Size Tire Size QTY/CTN
14-5.06.50-1425
15-7.16.50/7.00/7.50-1521
15-6.06.00-1521
16-7.17.50/H78-16LT18
16-6.56.50/7.00-16,F78-16LT18
16-5.56.00-16LT20
Sand Tire
Flap Size Tire Size QTY/CTN
16.7.19.00/11.00-1618
20-10.016.00-208
24/25-10.918.00-24/256
24/25-13.521.00/17.5-256
Tractor Tire
Flap Size Tire Size QTY/CTN
16.7.19.00/11.00-1618
20-10.016.00-208
24/25-10.918.00-24/256
24/25-13.521.00/17.5-256
Off-The-Road-Tire
Flap Size Tire Size QTY/CTN
20-11.915.00/16.00-204
24/25-10.114.00-24/258
24/25-1216.00-24/256
24/25-13.518.00-24/256
25-13.015.5-256
25-15.017.5/21.00-256
25-18.020.5/24.00-254
25-19.523.5-254
25-22.526.5-253
Industrial Tire
Flap Size Tire Size QTY/CTN
8-5.75.00-840
9-6.56.00/6.90-940
10-6.56.50/7.50/9.00-1040
12-5.57.00-1235
10-11.515L-1020
15-1014.50L-1515
14-6.024X8.00-1421
15-7.1200-15,250-1521
15-1228X13-1510
16-10240-1610
16-1212.58L-16니10
20-1750X20-204
18-1241X15.0-1810
20-1443X18-20,16-205
Short skirt Type(for long mile, Oliver and Vulcan System)
Code Tire Size O.D I.D B.B QTY/CTN
H#O14:00-20/21, 13.00-24, 18-20, 16.5R22.5, 18-22.5, 19.5-19.5, 16.00-20/2148"24"36"2(XL)
H#1A11.00-20, 12-22.5, 10.00-22, 11/12-24.5, 315/80-22.543"24"23.5"2(L)
H#1B12.00-20, 13-22.5, 11.00-22, 16.5-19.5, 13.00-20, 15-22.5, 13/80R20, 14/80R2043"20"31.5"2(L)
H#1-29.00-20, 10.00-20, 9.50-20, 10/11/12-22.5, 11.1-20, 10.5-2041"22"24"2(L)
H#37.50-20, 8.25-20, 9-22.538"21"21.5"2(S)
H#4B10.00-15LPT, 11.00-15, 10.00-16, 11.00-16, 12.5L-15/1637"16"28.5"3(S)
H#47.00-17/18, 7.50-17/18, 8-19.5, 9.00-15/16, 11L-16, 9.5-19.5, 6.50-2034"18"19.5"2(S)
H#57.50-15, 7.00-15, 7.60-15, 9.50-16.5, 8.25-16, 6.00/6.50/7.00-16, 8-17.5, 8.00-16.532"17"19.5"2(S)
H#68.55-14, 7.75-14, 6.70-15, 8.00-1530"16"18.5"2(S)
H#7-8All Smaller size 13", 14" and 15"27"14"15"4(S)
Long Skirt Type
Code Tire Size O.D I.D B.B QTY/CTN
H#1R11.00-20, 12.00-20, 10.00/11.00-22, 12.5-20, 13/80R20, 315/80R22.5, 11.24.5, 12-22.543"20"31.5"2(L)
H#1R-111.00-24, 12.00-2445"24"31.5"2(XL)
H#1BR19.00-20, 10.00-20, 11-22.5, 9.50-20, 11.1-20, 285/80-22.5, 12/80-20, 12/80R22.5, 295/80R22.541"20"28"2(L)
H#2R
H#2R-1		"18-22.5, 16.5-22.5, 445/65R22.515-22.5, 425/65R22.545" 44"20" 20"44" 38"2(XL) 2(XL)
H#3R7.50-20, 8.25-20, 9/10-22.538"20"23.5"2(S)
H#3R-4BR"10.00-15LPT, 11.00-15, 10-15 12.5L-16, 12-16.5"37"16"28.5"2(S)
H#4R7.00-18, 8.25-17/18, 6.50/7.00-20, 8-19.5, 245/70-19.534"18"19.5"2(S)
H#5R"7.50/8.25-15, 8.15-15, 8.75-16.5, 7.00-16/17, 8.00-16.5, 7.50-16/17, 300-15, 28X9-15, 900-15, 8.25-16, 10-16.5"32"15"22.5"2(S)
H#6R8.85-15, L84-15, 8.20-15, 8.90-15, 9.00-15, 9.15-15, 250-15, 6.50-1630"15"19.5"2(S)
H#7-8R7.00-12, 7.00-13/14, 7.50-14, 7.35-14, 7.75-14, 8.00-1427"12"18.5"4(S)
56X3614.00R2456"18"36"2(XL)
Extended Skirt Type
Code Tire Size O.D I.D B.B QTY/CTN
H#1ES
H#2ES		11.00-20, 12.00-20 10.00-22, 11.00-22, 12-22.5"42" 42"18" 20"34" 32"2(L) 2(L)
H#3ES
H#5ES		11-24.5 10.00-2042" 40"22" 18"30" 30"2(L) 2(L)
H#6ES
H#7ES		11-22.5 9.00-2040" 39"20" 18"28" 28"2(L) 2(L)
H#8ES
H#9ES		10-22.5 7.50-20, 8.25-2039" 37"20" 18"26" 26" 2(L) 2(L)
H#10ES9-22.537"20"24"2(L)
ARC System Type
Code Tire Size O.D I.D B.B QTY/CTN
RC111R24.544"18" 20"34" 32"2(XL)
RC212R24.5, 12R22.5, 10.00R22, 315/80R22.544"16"36"2(XL)
RC312.00R20, 14/18R20, 11.00R22, 11.00R24, 13R22.5, 15R22.544"14"38"2(XL)
RC411R22.5, 275/80R24.5, 285/75R-24.542"16"32"2(L)
RC510.00R20, 11.00R20, 13/80R20, 295/80R22.5, 315/75R22.542"14"36"2(XL)
RC710R22.5, 295/70R22.5, 11/70R22.540"16"30"2(L)
RC89.00R20, 275/80R-22.5, 295/75R22.540"14"32"2(L)
RC118R19.5, 9R19.5, 7.50R18, 9.5R17.535"13"27"2(S)
RC149R17.5, 9.50R16, 7.50R16, 31X10.50R1532"12"25"2(S)
RC158R16.531"13"22"2(S)
CURING TUBE
Size QTY/CTN
7.00/7.50/G78/H78-15LT10
8.25/9.00-158
10.00-155
11.00-155
H78/L78/7.00/7.50-16LT9
8.25/9.00-167
11.00-165
6.50-209
7.50-207
8.25-206
9.00-20, 10-22.55
10.00-20, 11-22.55
11.00-20, 12.22-54
12.00-20, 13-22.53
10.00-22, 11-24.54
11.00-22, 12-24.53
11.00-244
12.00-244
13.00-243
14.00-24/23, 15.5-253
16.00-24/25, 17.5-252
18.00-24/25, 20.5-251
24.00-25, 23.5-251
   Tube Mounting Manual(TB/LT, Bending Valve)
    How to Mount Tubes to Tires and Wheels
